Rethinking RL Infra for Agents

A year ago, RL for LLMs was almost entirely about reasoning – math, code, short single-turn problems with a clean verifier. The whole loop fit on one picture: model generates a response, environment scores it, optimizer updates the weights. Research focus were algorithmic (GRPO, DAPO, GSPO, Dr.GRPO); while infra was mostly an afterthought.

Agentic RL breaks that picture. ROLL puts it well in their report: RLVR trains models that “can answer”; agentic RL trains models that “can act.” The model no longer produces a single response – it lives inside a harness, calls tools, reads observations, spawns sub-agents, interacts with agent swarms, manages its own context, and finishes (or doesn’t) between minutes to days.

That shift is no longer an algorithm problem. It’s a systems problem. In agentic RL, rollout typically eats 80-90% of wall time, and the bottleneck moves from “how do I update the policy” to “how do I keep GPUs busy while a long, flaky, multi-turn trajectory finishes.” This post walks through the paradigm shift, tours four recent frameworks pushing on it (Forge, ROLL, SkyRL, Slime), and ends with our own take, Polar.

What Actually Changed?

A useful starting point is the objective Forge states up front:

max J(θ) = Throughput(A) × Sample-Efficiency(A)

Throughput is the raw tokens-per-second the system pushes through rollout, training, and I/O. Sample efficiency is how much each trajectory teaches the model – a function of data freshness, off-policyness, and noise. Every design choice in agentic RL infra is a trade-off between the two. Push throughput too hard and you go off-policy. Stay strictly on-policy and one long tail blocks the whole farm.

A few concrete things change once you accept this objective:

1. Rollouts dominate the wall clock. Generating tokens is the smaller part of a rollout. The bigger parts are tool execution, sandbox boot, file I/O, sub-agent retries, and context management between turns. Two tasks that look identical can differ by 10-100× in completion time.

2. Long tails are normal, not pathological. Some episodes finish in seconds. Some get stuck in retry loops or run into a slow tool and stretch to hours. Strict-sync FIFO turns one straggler into a global stall.

3. Async is no longer optional, but raw greedy async breaks training. You have to actively manage staleness, distribution drift, and stability.

4. Reward becomes sparse, gameable, and hard to verify. No clean “math answer correct” signal. An outcome-only 0/1 reward on a coding agent is essentially noise for the first few thousand steps. Add naïve shaping and the model finds a way to hack it.

5. The agent harness is increasingly a black box. The harnesses most worth training against – Claude Code, Codex, Qwen Code, Gemini CLI – are closed binaries you can’t open and rewrite into env.step().

6. Token-In-Token-Out (TITO) drift is real. Decode-then-re-encode round-trips through text quietly diverge from the original token IDs (interstitial whitespace, special tokens, tokenizer edge cases). If the trainer optimizes a token sequence that isn’t the one the rollout policy actually sampled, your gradient is wrong.

All of these point the same direction: the training loop and the agent loop have to live in different processes, talk through a stable interface, and never assume the other side is a known quantity.

A Tour of Agent RL Frameworks

Let’s walk through four of the most representative frameworks evidenced in public – Forge (Minimax), ROLL (Alibaba), SkyRL-Agent (NovaSky AI / Berkeley), and Slime (Zhipu) – attacking the similar problem from different angles. Each is worth understanding on its own terms.

Forge: Treat the Agent as a Trajectory Producer

Though a private framework, Forge’s tech report showcases its move to redefine what an agent is to the training system. It’s not a class inside the RL framework that gets step()-ed on. It’s an independent Trajectory Producer running on the outside; the RL system just consumes whatever messages and rewards come back.

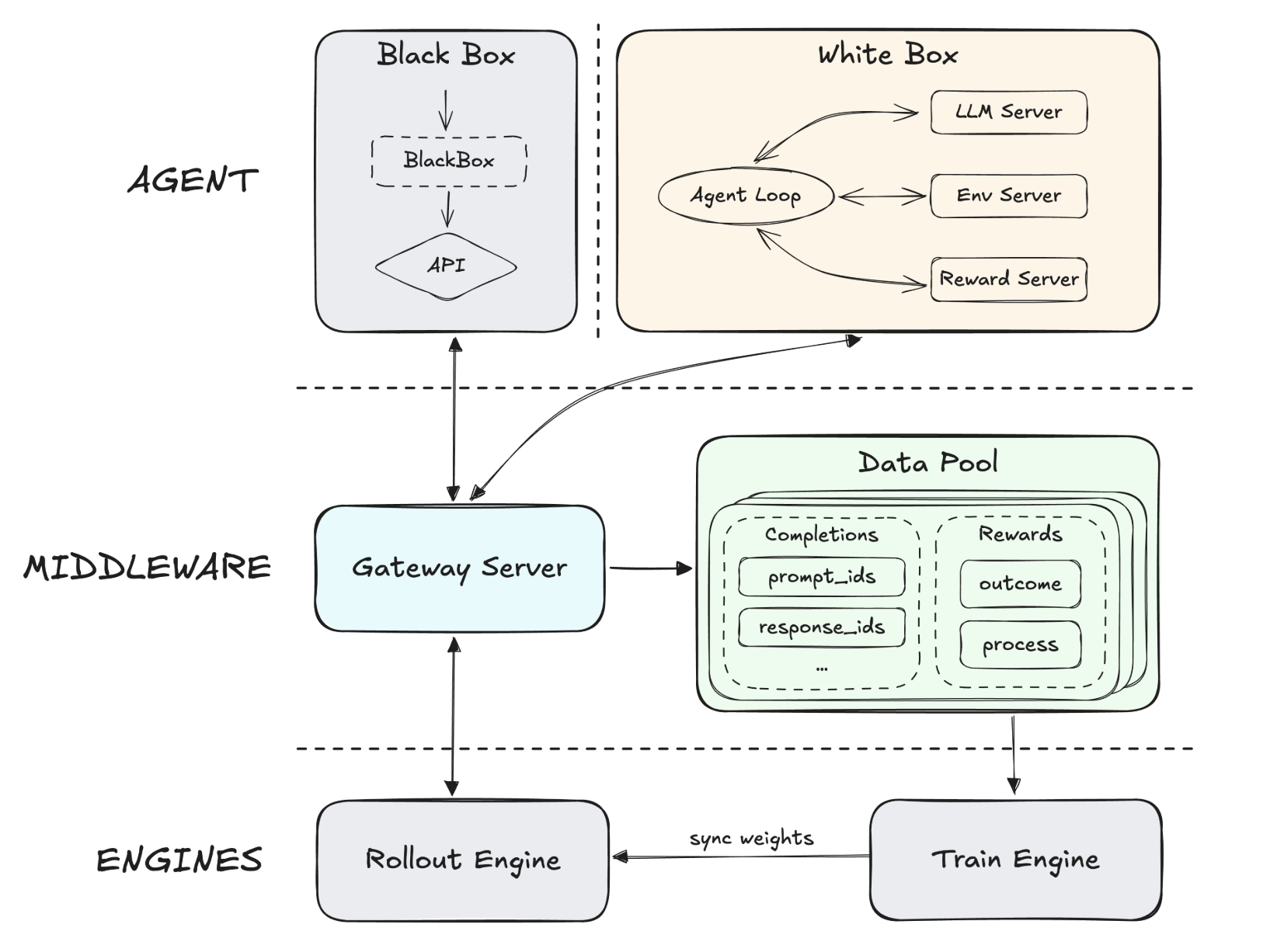

The architecture has three layers: an Agent (white-box or black-box, producing trajectories), a Middleware layer (a Gateway Server for standardized LLM traffic and a Data Pool collecting completions and rewards asynchronously), and Engines (the rollout engine and train engine, syncing weights periodically).

Pure FIFO blocks on the head of the queue; pure greedy async lets the trainer over-consume short, fast samples and drift the distribution. Forge introduces a sliding window [H, H+W] – inside the window, whoever finishes first gets consumed; outside, you wait. It’s not really a scheduler, it’s a sample distribution regulator.

Forge also takes the dense-reward problem seriously. A real coding session can span thousands of trajectory turns; an outcome-only 0/1 produces no learnable gradient for ages. Forge composes process rewards (penalize broken tool calls, dense intermediate signal), task-completion-time rewards (encourage shorter execution paths), and the final outcome. In practice, every reward component needs a cap. We’ve seen runs where a single uncapped shaping term silently swallows the outcome signal – the model just learns to maximize the proxy. A reasonable default we landed on: outcome dominates, intermediate checkpoints contribute +0.1 each, process total capped at 0.5.

ROLL: Treat the Whole Pipeline as an Async Distributed System

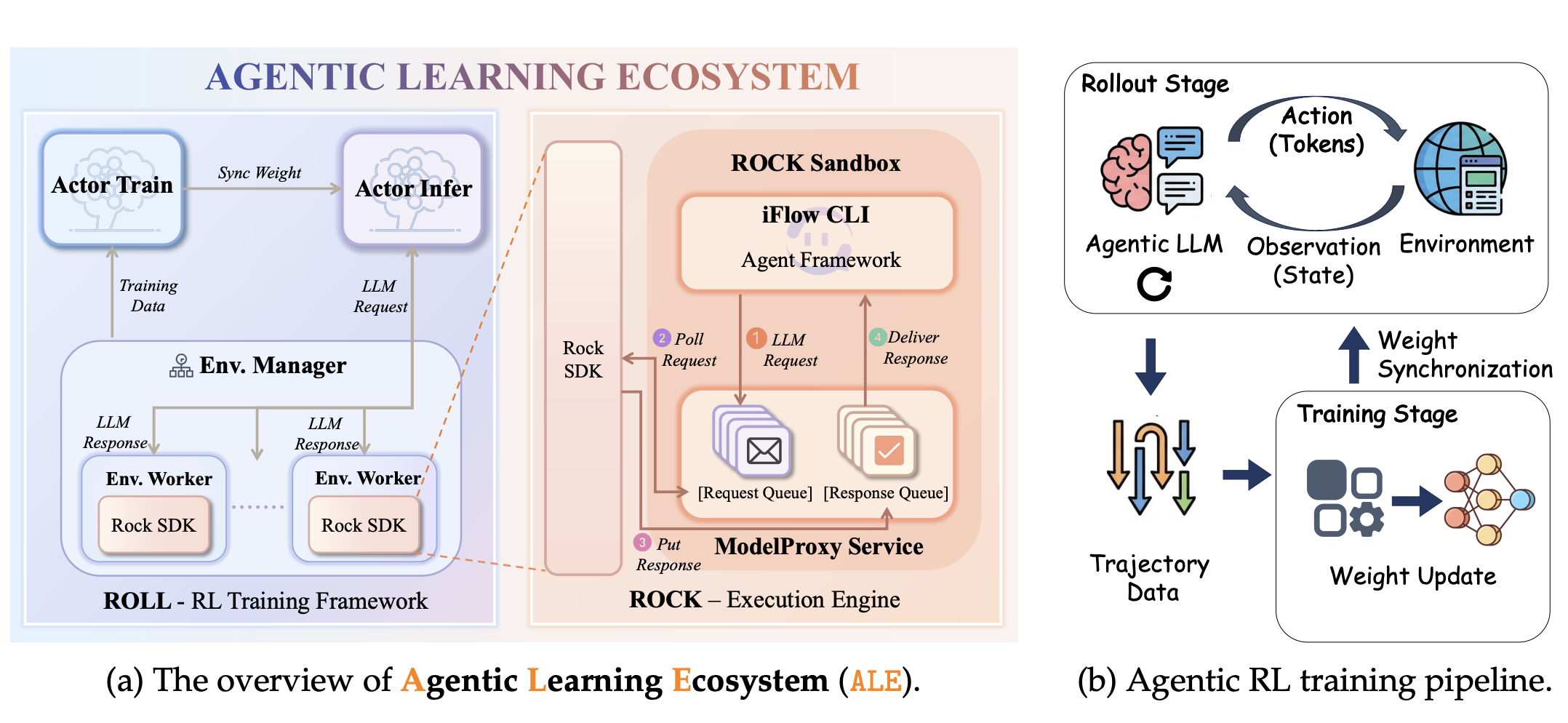

ROLL goes all-in on async. Its central claim, in CLI-Native Mode, is that the training framework should not reimplement the agent at all – it should consume whatever an existing agent runtime (e.g. iFlow CLI) produces.

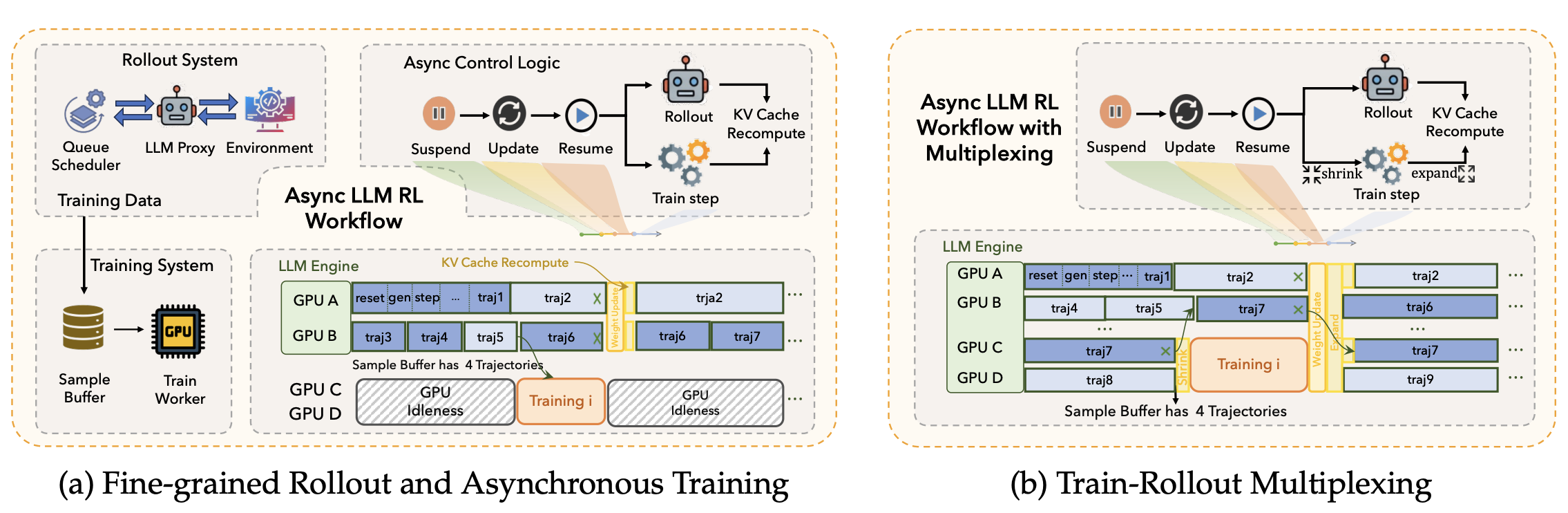

ROLL breaks one RL iteration – rollout, env interaction, reward, loss, update – into stages that run on independently scheduled workers. Trajectories flow into a sample buffer; the trainer pulls batches and applies an asynchronous ratio to cap how stale a sample can be relative to the current policy. Out-of-budget samples get dropped.

A second move, train-rollout multiplexing, dynamically reassigns GPUs across the boundary. If rollout becomes the bottleneck, GPUs slide from training to rollout; once the sample buffer fills up, they slide back. Static 50/50 splits leave one side idle.

The third, Chunked MDP + IPA (Interaction-Perceptive Agentic Policy Optimization), is more algorithmic but lands in the infra. ROLL argues that token-level optimization is too fine (most tokens don’t change environment state) and sequence-level is too coarse (mixes many decisions into one credit). They cut the trajectory into interaction chunks – the contiguous tokens between two environment interactions – and propagate return, importance ratio, and mismatch masking at chunk granularity.

ROLL also treats environment cleanliness as part of reward correctness, not engineering hygiene. In one of their early synthetic harnesses, false-positive rate hit ~40%: a task asked for a full git push to a webserver, but the test script only checked whether some URL returned "hello world", so the agent learned to echo it directly into the doc root and call the task done. ROLL responded with three checks at task admission – an LLM-as-judge sanity pass, a ground-truth pass (golden solution must pass the test), and a no-op pass (doing nothing should not pass the test). If your verifier isn’t reliable, the policy will optimize against the verifier’s holes, not the task.

SkyRL: Pipeline the Stages, Unify Through Tools

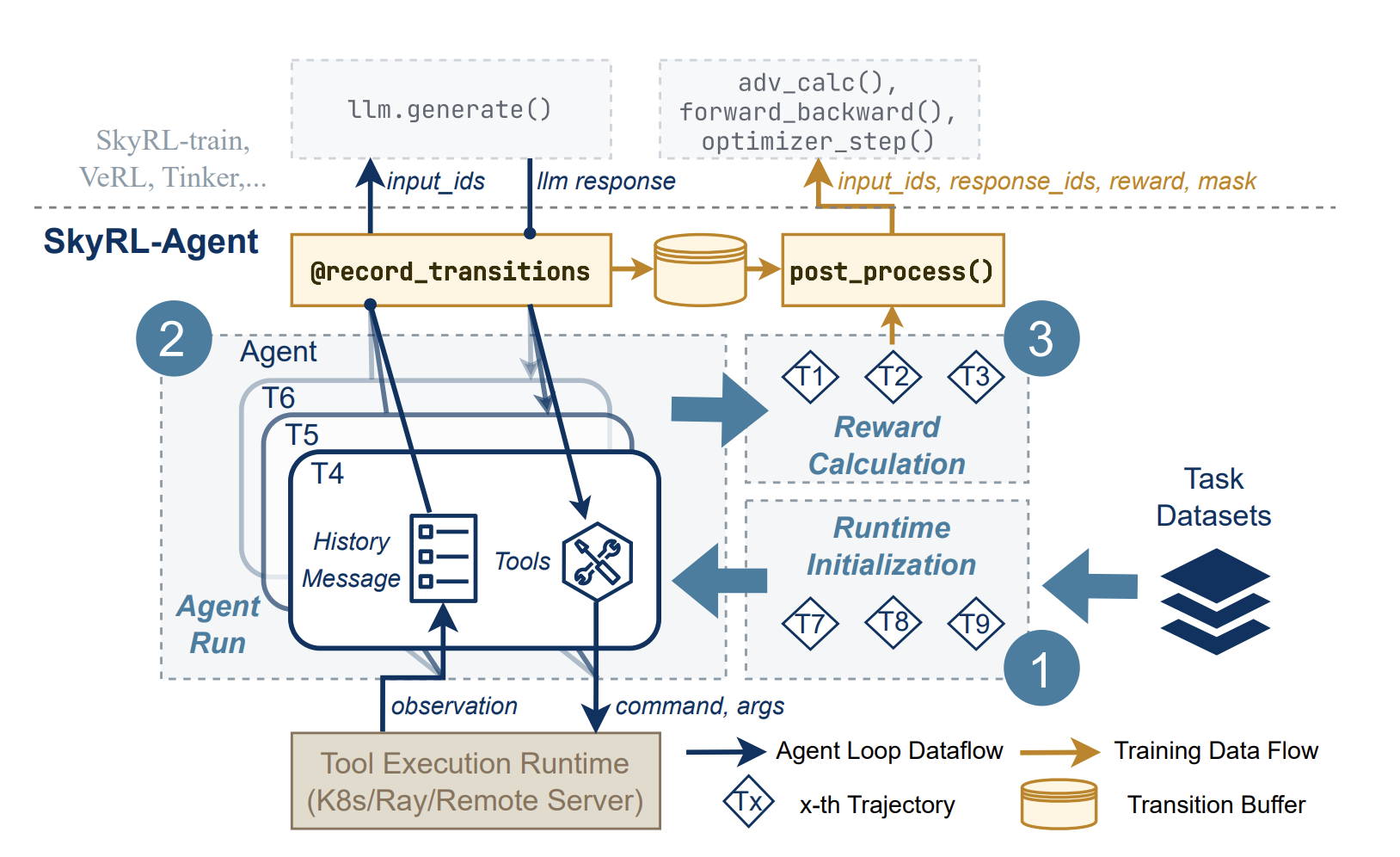

SkyRL-Agent attacks the same throughput-vs-stability tension from a different angle: rather than redefining the agent boundary or going fully async, it focuses on fine-grained pipeline scheduling across heterogeneous rollout stages, paired with a tool-centric unified agent loop that keeps every framework concern reachable through one abstraction.

The starting observation is that a multi-turn rollout is not one job. It’s at least three: runtime initialization (cold-starting a sandbox or container – CPU-bound and slow), agent run (the LLM-and-tool loop itself – mixed CPU/GPU), and reward calculation (run tests, score outputs – often CPU-bound and long-tailed). Naive async batching launches them all at once and waits on the slowest; bounded batching caps concurrency but still serializes the stages within each trajectory. Both leave the GPU idle for stretches.

SkyRL’s Async Pipeline dispatcher overlaps these three stages across trajectories through three bounded queues of configurable size. While trajectory i is in its CPU-bound reward stage, trajectory j can already be running its LLM forward pass on the same GPU. The reported numbers: 1.55× speedup over naive bounded async batching and ~90% sustained GPU utilization during generation – exactly the “kill the CPU/GPU bubbles” win anyone who has profiled long-horizon rollouts will recognize.

Two more design choices worth flagging:

• Tool-centric unified agent loop. Every agent action – stateless calls (python interpreter), environment-modifying calls (file editor), and even agent-state-modifying operations like summarization or history truncation – is registered through the same BaseTool interface. This puts context management inside the action space rather than as an out-of-band hack, the same insight Forge reaches independently. It also means a new task is just a few tool registrations, with the main agent loop untouched.

• Transition-based trajectory representation. SkyRL replaces conventional mask-based loss construction with a (o_t, a_t, r_t) transition tuple captured by a lightweight @record_transitions decorator. Each LLM invocation gets recorded with its input tokens, output tokens, and log probabilities; post_process then aggregates them into a backend-agnostic format consumable by SkyRL-train, VeRL, or Tinker. The benefit is twofold – it sidesteps the brittleness of mask-based concatenation when context gets compacted between turns (the “one continuous text sequence” assumption breaks the moment you summarize), and it gives token-level fidelity for free: the inference engine’s actual sampled IDs and logprobs are what the trainer optimizes, not a re-tokenized transcript.

SkyRL also lands a recipe-level lesson worth absorbing. When they trained SA-SWE-32B (Qwen3-32B → 39.4% on SWE-Bench Verified, with >2× cost reduction over comparable baselines), they noted that better tools matter more than more steps. A bash-only setup spent most of its rollout budget thrashing through grep and view; replacing it with an AST-aware code search tool dramatically improved both rollout pass@K and sample efficiency. Reward shaping fixes credit assignment; tool design fixes the action distribution itself. The two are not interchangeable.

Slime: Fully Async, Just Control the Drift

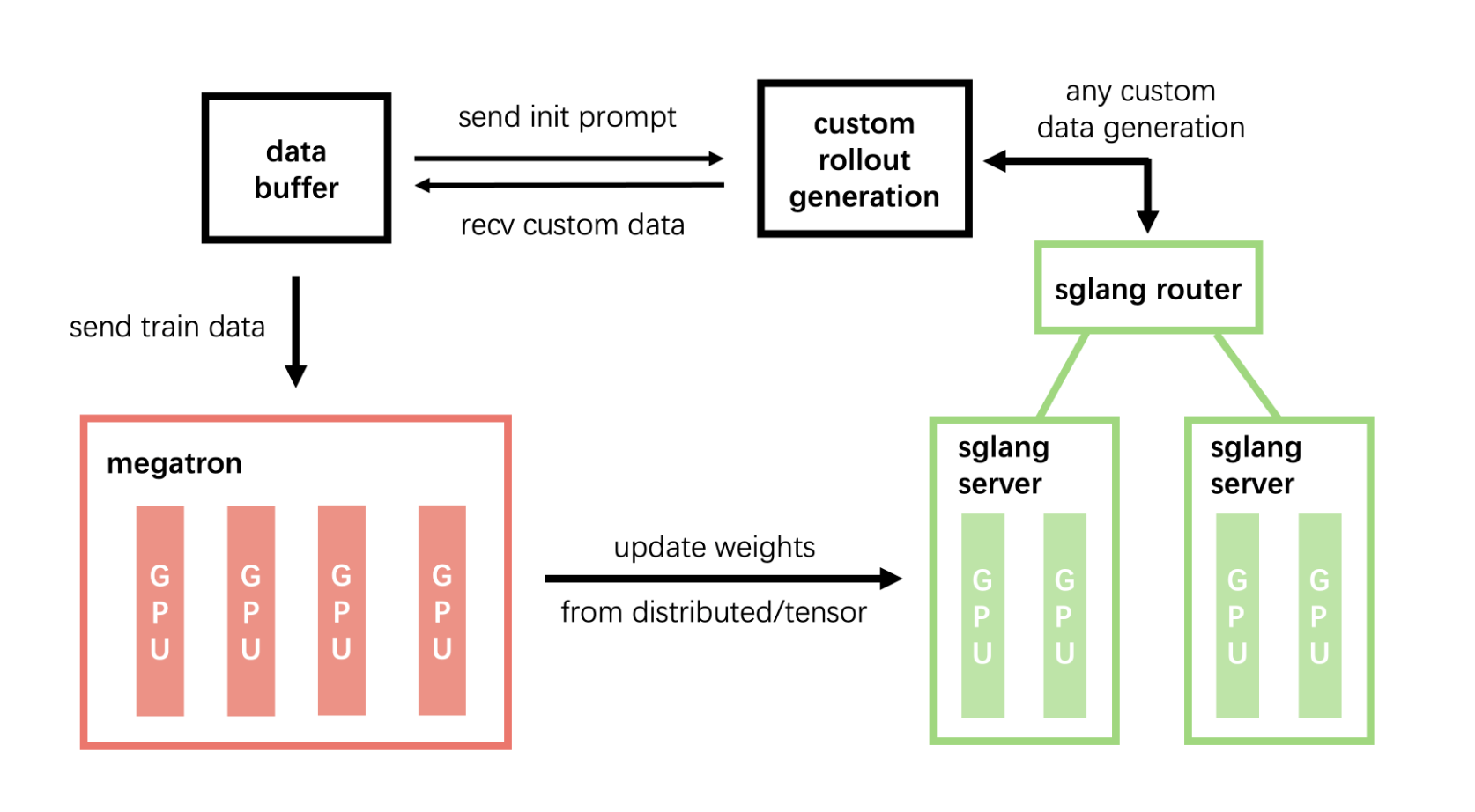

Slime takes the most radical position: don’t try to be sync, don’t even pretend. Inference engines stream trajectories continuously, the training engine refreshes weights on its own beat, and rollout weights periodically resync to whatever training is on.

The interesting question becomes: when a single trajectory can span multiple policy versions, how do you contain the off-policy error?

Slime’s answer is engineering-flavored: don’t try to reconstruct the exact π_old per token (which would require tracking every historical checkpoint). Instead, log the log-probability at sampling time as the behavior signal, then compute importance ratios against the current policy at training time. It’s an approximation, but it’s the right approximation for an async setting.

On top of that:

• Direct double-sided importance clipping [1 - ε_l, 1 + ε_h]. Tokens with ratio outside the window get masked entirely rather than scaled – a stricter version of DAPO’s Clip-Higher (e.g. raise the upper clip from 0.2 → 0.28 to give low-probability exploratory tokens more room).
• Sample-level staleness threshold on top of token-level clipping. If a response was generated by a policy too many versions behind the trainer, drop it. Local drift gets handled by clipping; global staleness gets handled by sample drop.
• Prefill-Decode Disaggregation. Long prefills and short decodes shouldn’t share the same cluster – in multi-turn agent traffic, prefills pile up and starve the decode side. Slime separates them physically, and trajectory completion time stabilizes.
• TITO Gateway records the actual token IDs sampled by the inference backend rather than re-tokenizing the text after the fact. Combined with FP8 rollout inference, this single decision removes a whole category of silent gradient corruption.

Conclusion: Common Patterns Worth Taking

A handful of things cut across all four, and has been reinforced over my experiments:

• Do not mask or drop thinking tokens – that’s where the model’s value actually lives. Mask tool observations including tool error, or the fitted model can repeat errors.
• Token-level loss aggregation (DAPO-style) is more stable than sequence-level on long running trajectories.
• GRPO has a length bias – longer responses get implicitly up-weighted by mean/std normalization. Dr.GRPO drops the length term and recovers an unbiased baseline.
• Sandbox container pooling matters more than you think. Reducing CPU bound runtime preparation steps can usually give 3~5x speedup in our setups.
• Red-team the reward before launch. Prerun separate experiments encouraging reward hacking based on your reward function to surface possible hacking patterns. During training, sample rollouts over time and run an LLM-as-judge for hack-pattern detection. It catches things the reward curve hides.

Polar: When the Harness is a Black Box

Introducing my recent work, Polar. The frameworks above all assume some level of control over the agent – the Trajectory Producer in Forge, the CLI runtime in ROLL. But many of the most interesting harnesses to train against today are closed binaries: Claude Code, Codex, Qwen Code, Gemini CLI. You can’t wrap them in predefined Python API. You can’t even necessarily intercept their internal event loop.

Polar (our recent work) starts from this constraint: can we train agents with RL without opening the box?

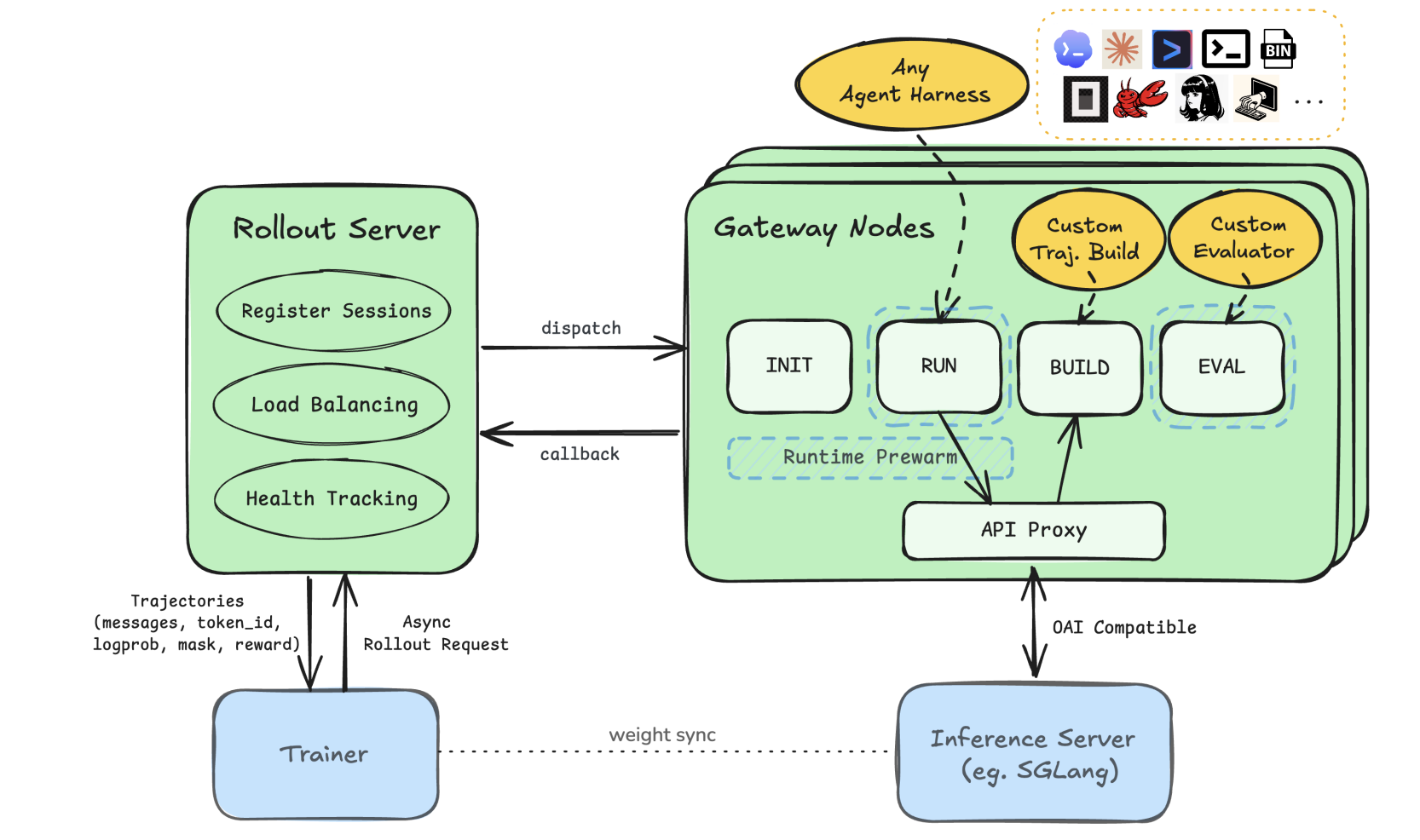

The observation is simple. Every LLM-based agent, no matter how complex its internals, has to talk to a model. The model API endpoint is a universal interface that exists outside the harness. So instead of integrating into the harness, Polar places a provider-compatible proxy at the LLM API boundary. The harness runs unchanged, makes its normal Anthropic / OpenAI / Google-shaped calls, and the proxy quietly records prompts, sampled token IDs, log probabilities, and responses on the way through.

After execution, Polar reconstructs trainer-ready trajectories from the captured completions. Two builders are provided. per_request keeps each model call as one trace – lossless but fragments a long session into many short samples. prefix_merging recovers append-only conversation chains and emits longer, contiguous traces; sub-agents, parallel branches, and context compactions naturally fall into separate chains. Within each merged chain, only sampled assistant tokens are copied as trainable, while canonical interstitial tokens are masked – behavior-policy fidelity preserved, trainer-facing samples cut down.

On the infra side, Polar separates rollout submission, runtime initialization, harness execution, trajectory reconstruction, and evaluation into independent worker pools (INIT, RUNNING, POSTRUN) per gateway node. Runtime prewarm and long-tail evaluation run off the GPU-critical path, so CPU-heavy container boot doesn’t block the next agent run. Trainers consume the resulting trajectories asynchronously, completely agnostic to whatever harness produced them.

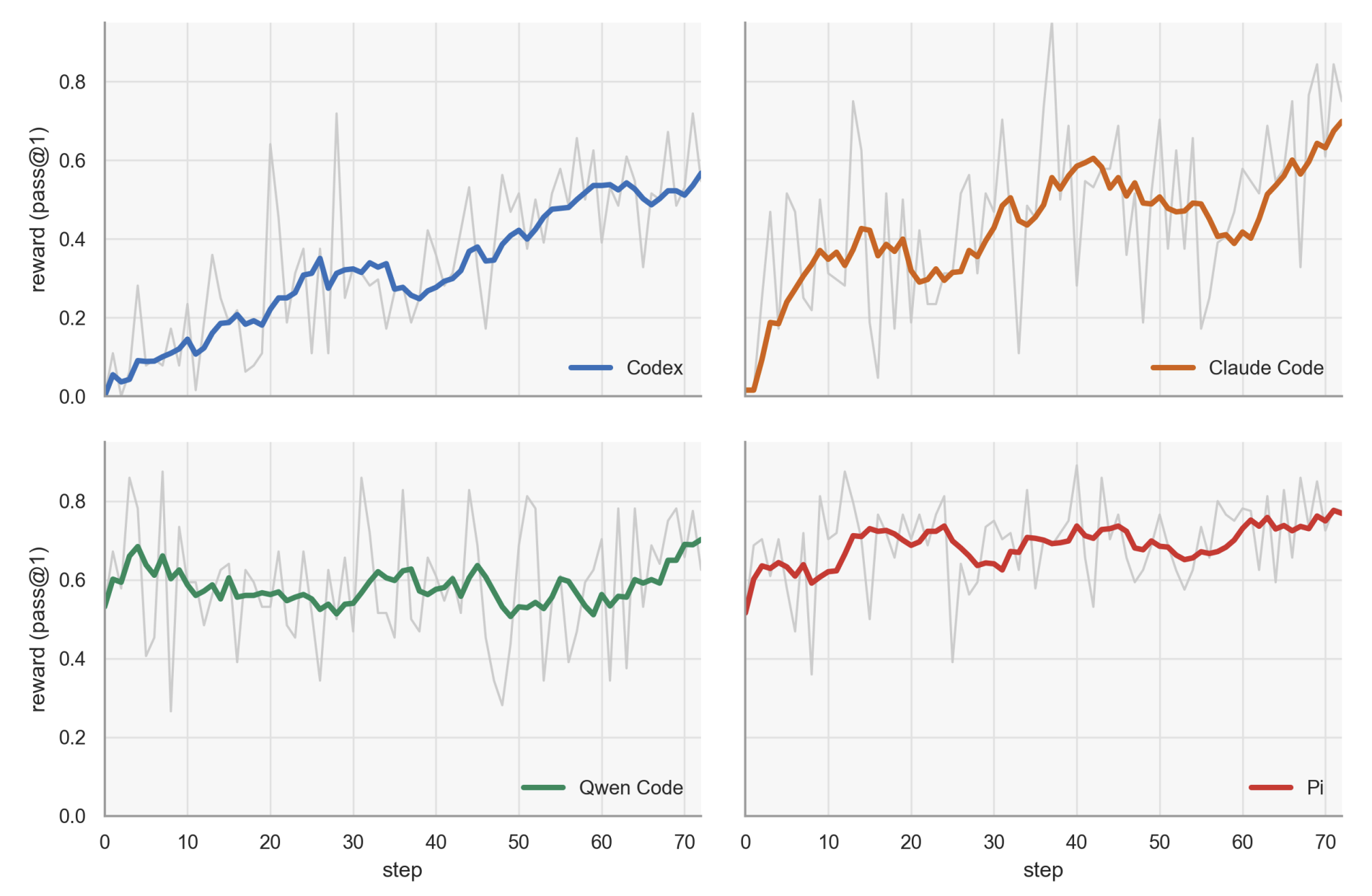

We validated this on SWE-Bench Verified, starting from the same Qwen3.5-4B base checkpoint and running standard GRPO over four real coding harnesses:

The biggest gain is on Codex – a harness whose tool schema is far from the base model’s native priors, so RL has the most adaptation room. prefix_merging over per_request also delivered a 5.39× wall-clock speedup on the trainer side, since fewer fragmented updates means rollout GPUs stay above 87% utilization instead of bouncing on context switches.

What Next-Gen Agent RL Infra Looks Like

Pulling everything together, the design space for the next generation seems to converge on a few principles:

1. The integration boundary is the model API, not env.step(). Any infra that requires the harness to be ported into a Python class will lose to one that listens at the LLM endpoint, because the harnesses worth training against are increasingly closed.

2. Async by default, with staleness made explicit. Pick your tools – async ratio, importance clipping, sample drop, version-tagged buffers – but pick something. Hidden staleness is hidden bias.

3. Process rewards / PRMs become first-class. Pure outcome reward on long trajectories is too sparse to learn from and too easy to hack. Dense intermediate signal (capped!) is the difference between a run that converges and a run that doesn’t.

4. Environment cleanliness is part of reward correctness. False positives, leaked test files, cached artifacts – the agent will find them all. Reward is only as trustworthy as the environment it runs in.

5. KV cache and speculative decoding across shared resources. Global KV pools, group-aware spec decoding, and PD disaggregation move from rollout micro-optimizations to first-class infra primitives.

6. Token fidelity end-to-end. The trainer must optimize the tokens that the rollout policy actually sampled. Anything that round-trips through text decode/encode will silently corrupt the gradient.

The clean separation we’re starting to see – harness on the outside, model API as the seam, rollout-as-a-service in the middle, training engine just consuming what comes back – feels like the right factoring. As we approach the data wall of imitation learning, optimizing Agentic RL infra is the new scaling law towards real world intelligence.

Citation

Xu, Binfeng. "Rethinking RL Infra for Agents". B'Log (May 2026). https://billxbf.github.io/posts/agent-rl-infra/
